LFMF-15-I2 LFMF-16-I2 LFMF-17-I2 Dwyer德威爾轉子流量計

商品編號：18769

LFMF-15-I2 LFMF-16-I2 LFMF-17-I2 Dwyer德威爾轉子流量計

價 格：詢價

產 地：美國更新時間：2020-10-30 16:59

品牌：德威爾型號：LFMF-15-I2 LFMF-16-I2 LFMF-17-

狀態：正常點擊量：2247

在線留言

400-006-7520

聯系我時，請說明是在上海非利加實業有限公司上看到的，謝謝！

上海非利加實業有限公司

聯 系人： 上海非利加實業有限公司

電話： 400-006-7520

傳真： 400-006-7520

配送方式： 上海自提或三方快遞

聯系我時請說在上海非利加實業有限公司上看到的,謝謝！

LFMF-15-I2 LFMF-16-I2 LFMF-17-I2 Dwyer德威爾轉子流量計

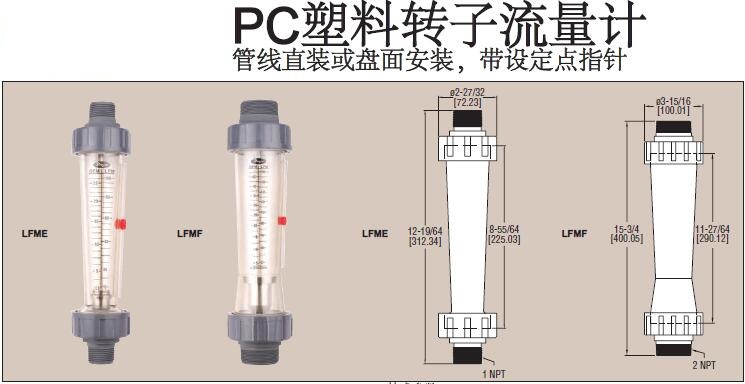

LFM系列聚碳酸酯轉子流量計采用聚碳酸酯注模而成，具有很好的抗化學腐蝕性能和耐熱性。它采用了GPM和LPM雙刻度，精度為5%。刻度在背景襯托下，很容易讀數。LFMA，LFMB和LFMC都采用了1/2"NPT外螺紋接頭，LFMD采用了3/4" NPT接頭，LFME采用了1" NPT接頭，LFMF采用了2" NPT接頭。可選帶90度彎管接頭用于儀表盤柜安裝，并附帶安裝螺母。還可選擇其它的連接方式。

注意：LFM系列流量計僅能用于沒有陽光直射的室內，聚碳酸酯材料會受到紫外線的影響

The New LFM Series Flowmeters are made of injection molded, heat and chemically

resistant polycarbonate bodies and fittings. Series LFM flow meters have dual scales

measuring in both GPM and LPM with 5% accuracy. A textured background on the body

enhances scale readability. Standard in-line models come with 1/2? male NPT process

connections while panel mount installation is available with 90° elbow fittings that include

panel lock nuts. Various other fittings are available.

產品參數

LFMF-15-I2 LFMF-16-I2 LFMF-17-I2 Dwyer德威爾轉子流量計

技術指標

介質：水

材質表：

型號	主體	Flange	Float	浮子	O型圈	Female	Male	90° Male	Metric
		Nut	Stop			Thread	Thread	NPT Elbow	Union
LFMA	聚酯	ABS	ABS	316 SS	氟橡膠	/	ABS	PVC	ABS
LFMB	聚酯	ABS	ABS	316 SS	氟橡膠	/	ABS	PVC	ABS
LFMC	聚酯	ABS	ABS	316 SS	氟橡膠	/	ABS	PVC	ABS
LFMD	聚酯	ABS	聚丙烯	316 SS	氟橡膠	PA66	PA66	PVC	PVC
						(nylon)	(nylon)
LFME	聚酯	ABS	聚丙烯	316 SS	氟橡膠	PA66	PA66	PVC	PVC
						(nylon)	(nylon)
LFMF	聚酯	ABS	聚丙烯	316 SS	氟橡膠	PA66	PA66	/	ABS
						(nylon)	(nylon)

壓力范圍: 120 psi (8.2 bar) at 68°F (20°C); 90°彎頭: 116 psi (8 bar) at 68°F (20°C).
精度: ±5%.
過程連接:

LFMA: 1/2" male NPT
LFMB: 1/2" male NPT
LFMC: 1/2" male NPT

LFMD: 3/4" male NPT

LFME: 1" male NPT

LFMF: 2" male NPT

重量: LFMA: 2 oz (56.7 g); LFMB: 3 oz (85.0 g); LFMC: 4 oz (113.4 g); LFMD: 10 oz (283.5 g); LFME: 15 oz (425.2 g); LFMF: 40 oz (1.1 kg)

型號表

型號	量程（GPM 水）	過程連接	浮子
LFMA-01-A2	0.1-1(5-4LPM)	1/2″male NPT	316SS
LFMA-02-A2	0.2-2(1-7LPM)	1/2″male NPT	316SS
LFMA-03-A3	0.5-5(1.8-18LPM)	1/2″male NPT	316SS
LFMB-04-A2	0.1-1(5-4LPM)	1/2″male NPT	316SS
LFMB-05-A2	0.2-2(1-7LPM)	1/2″male NPT	316SS
LFMB-06-A2	0.5-5(1.8-18LPM)	1/2″male NPT	316SS
LFMC-07-A2	0.25-2.5(1-10LPM)	1/2″male NPT	316SS
LFMC-08-A2	0.5-5(1.8-18LPM)	1/2″male NPT	316SS
LFMC-08-A2	0.8-8(3-30LPM)	1/2″male NPT	316SS
LFMD-10-C2	0.8-8(3-30LPM)	3/4″male NPT	316SS
LFMD-11-C2	1-10(4-40LPM)	3/4″male NPT	316SS
LFME-12-F2	1.2-12(5-50LPM)	1″male NPT	316SS
LFME-13-F2	2-20(8-80LPM)	1″male NPT	316SS
LFME-14-F2	2.5-25(10-100LPM)	1″male NPT	316SS
LFMF-15-I2	2.5-25(10-100LPM)	2″male NPT	316SS
LFMF-16-I2	5-45(20-180LPM)	2″male NPT	316SS
LFMF-17-I2	7-70(25-250LPM)	2″male NPT	316SS

可選附件

LFMA
A-560 20 mm公制耦合接頭 - ABS
A-566 1/2" 外螺紋接頭 - ABS

LFMB
A-561 20 mm 公制耦合接頭 - ABS
A-567 1/2" 外螺紋接頭- ABS
A-575 1/2" 外螺紋帶90° 轉接頭 - PVC

LFMC
A-562 20 mm 公制耦合接頭 - ABS
A-567 1/2" 外螺紋接頭- ABS
A-568 3/4" 外螺紋接頭- ABS
A-576 1/2" 外螺紋帶90° 轉接頭- PVC

LFMD
A-563 32 mm 公制耦合接頭 - PVC
A-569 3/4" 外螺紋接頭- Nylon
A-572 3/4" female NPT Fitting - Nylon
A-577 3/4" 外螺紋帶90° 轉接頭- PVC

LFME
A-564 40 mm 公制耦合接頭 - PVC
A-570 1" 外螺紋接頭- Nylon
A-573 1" 內螺紋接頭- Nylon
A-578 1" 外螺紋帶90° 轉接頭- PVC

LFMF
A-565 63 mm 公制耦合接頭 - ABS
A-571 2" 外螺紋接頭- Nylon
A-574 2" 內螺紋接頭- Nylon
